BUSBOARD® Protoboard - 71 x 108mm
Product code : PR1553B
Description

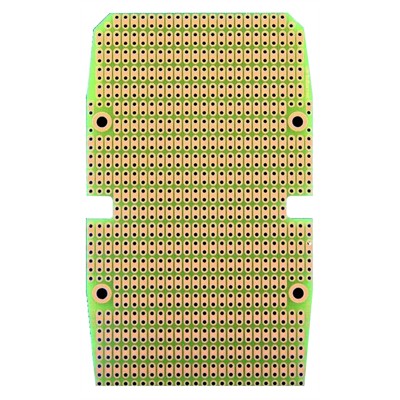

The PR1553B is a prototyping circuit board (PCB) designed to fit the Hammond 1553B hand-held plastic enclosure. It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1553B enclosure.
Features
Single-sided high-quality FR4 glass-epoxy circuit board
Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts
1oz/ftsq copper with an anti-tarnish coating for easy soldering; lead-free and RoHS compatible
0.042" holes are drilled on 0.1" (2.54mm) centers; 4 mounting holes; screws provided
PCB Size 2.80 x 4.27 in (71.1 x 108.5 mm)
Additional information
Other features
Approval
RoHS compliant
